Hatch

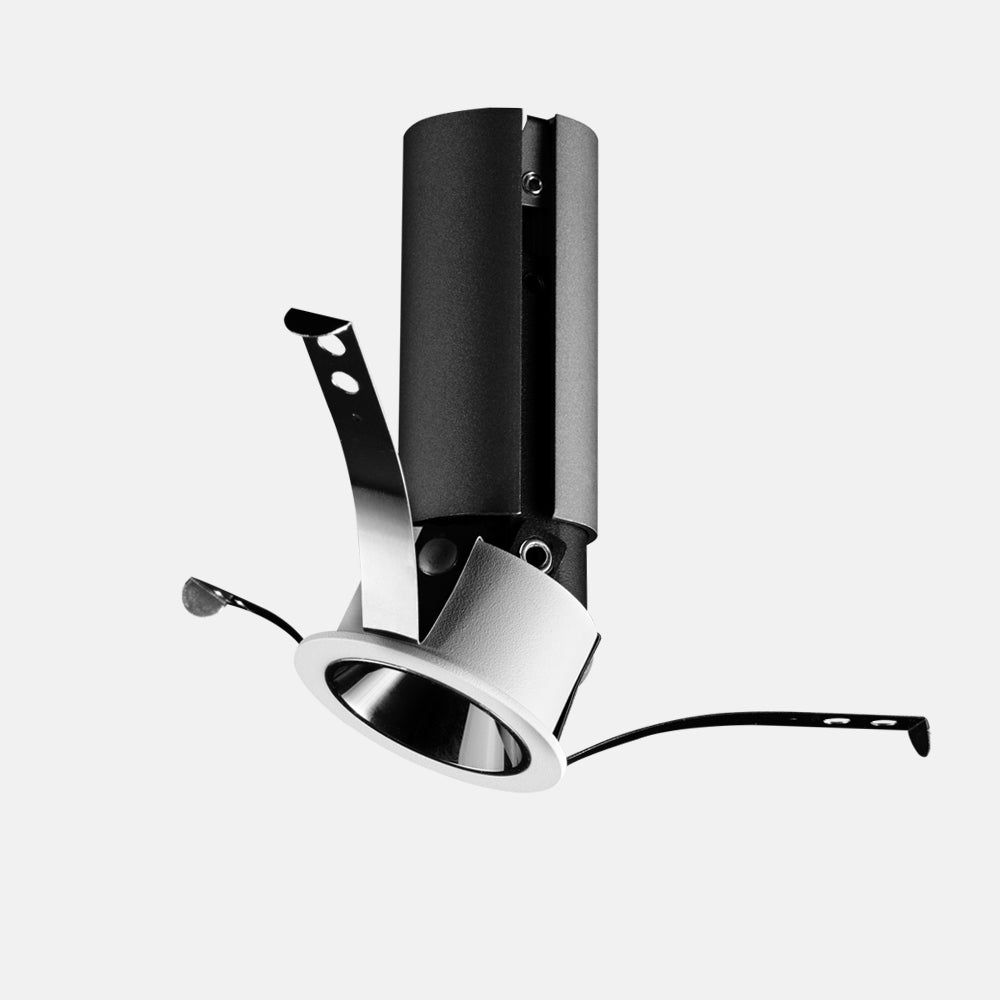

Small lamp body , multiple functions . Super long radiator with excellent heat dissipation effect . Mininal watts can be 6W . Maximum watts can be 12W.
1 1
Specification

HT0005 (01.228A01000)

Power：5W

Installation method：Recessed

Cut out：φ35mm

Options：Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：42 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility： 360° Rotation | 30° Tilting

Light distribution：Direct

UGR：＜10

Beam angle：18°/25°/32°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

Se komplette oplysninger

Download

5W
5W
5W
5W
5W
5W
5W
5W
5W

Beam angle

5W
5W
5W
18°
25°
35°

Applicable Instructions for 18° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
