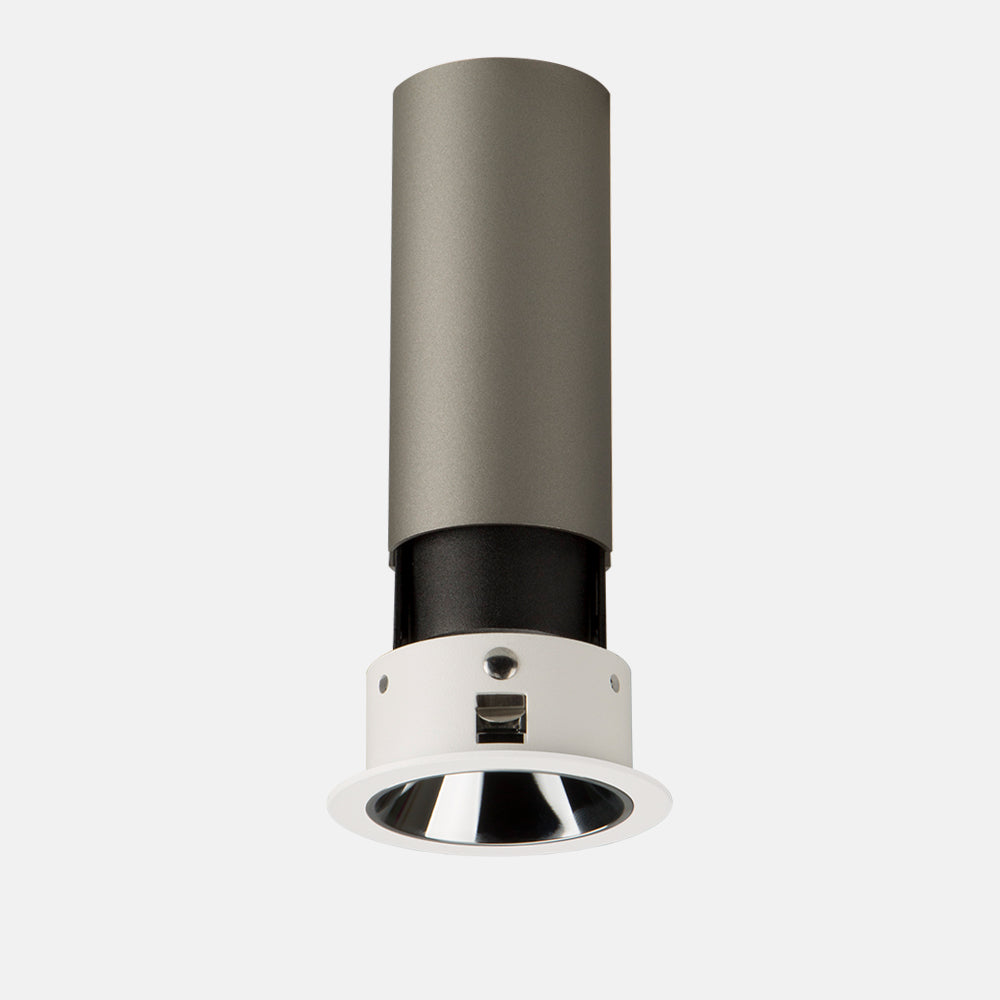

Hatch

Small lamp body , multiple functions . Super long radiator with excellent heat dissipation effect . Mininal watts can be 6W . Maximum watts can be 12W.
1 1
Specification

HT0110/HT0112 (01.202A01000)

Power：10W /12W

Installation method：Recessed

Cut out：φ50mm

Options：Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：58 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility： 355° Rotation | 30° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：13°/21°/27°/39°/50°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

Se komplette oplysninger

Download

10W
10W
10W
10W
10W
10W
10W
10W
10W

Beam angle

10W
10W
10W
10W
10W
13°
21°
27°
39°
50°

Applicable Instructions for 13° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
